High-Voltage Power Supplies |
| ¡@ |
|
AC Output Modules |
||||||||
|
Type |
Model No. | Operating Power |
Input Voltage |
Output Voltage (RMS) |
Frequency | Operating Surface Temperature |
Size (mm) |
 ¡@
¡@
|
|

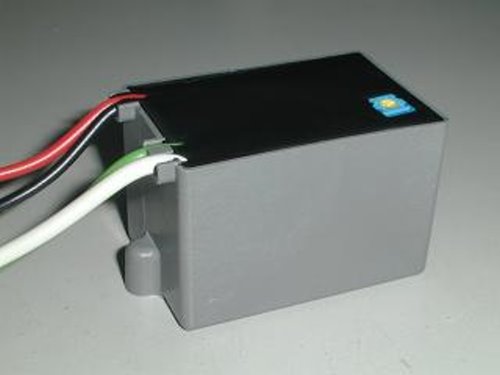

OZ12V10W |
CHP-1515A | 10W Max. | 12VDC | 3KV Max. | 17 - 55KHz | 0¢XC to +80¢XC |
 |
|
|

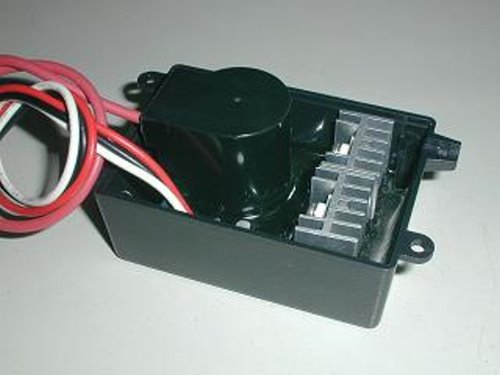

OZ12V20W |
¡@ | 20W Max. | 12VDC | 4.5KV Max. | 50KHz Max. | 0¢XC to +80¢XC |
|
|
|
OZ12V20W-1 |
¡@ | 20W Max. | 12VDC | 4.5KV Max. | 50KHz Max. | 0¢XC to +80¢XC |
|
|
|

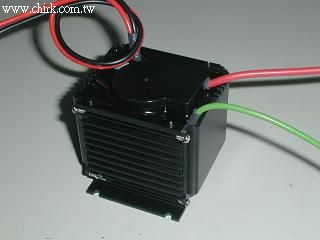

OZ24V25W |
CHP-1214A | 25W Max. | 24VDC | 4.5KV Max. | 50KHz Max. | 0¢XC to +80¢XC |
|
|
|
OZ120W |
¡@ | 120W Max. |
110VAC
or 220VAC |
8KV Max. | 35KHz Max. | 0¢XC to +80¢XC |
|
|
|
DC Output Modules |
|||||||
| Type | Model No. |
Operating Power |
Input Voltage |
Output Voltage |
Operating Surface Temperature |
Size (mm) |
¡@ ¡@
¡@ ¡@
¡@ ¡@
|
|

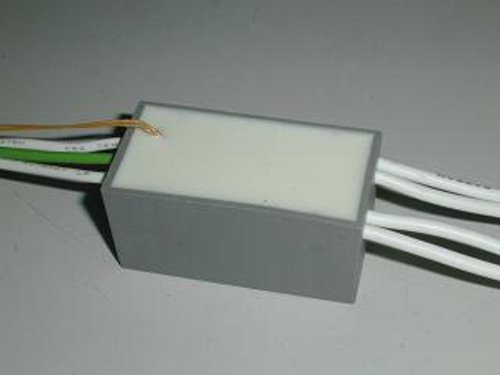

ION110V2W
|
¡@ | 2W | 110VAC |
+4KVDC -4KVDC |
0¢XC to +80¢XC |
|
|
|

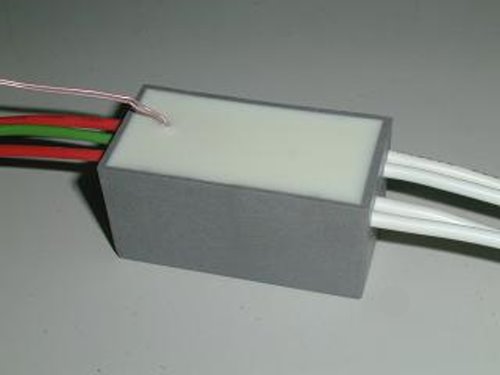

ION220V3W
|
¡@ | 3W | 220VAC |
+5KVDC -5KVDC |
0¢XC to +80¢XC |
|
|
|

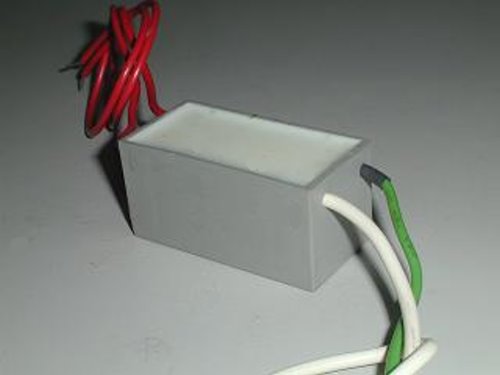

ION110V2W-1 |
¡@ | 2W | 110VAC | 8KVDC | 0¢XC to +80¢XC |
|
|
|

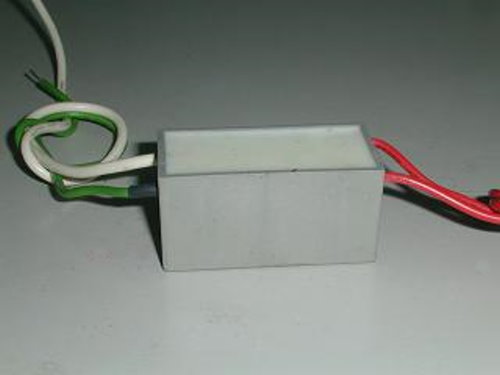

ION220V3W-1 |
¡@ | 3W | 220VAC | 10KVDC | 0¢XC to +80¢XC |
|
|
|

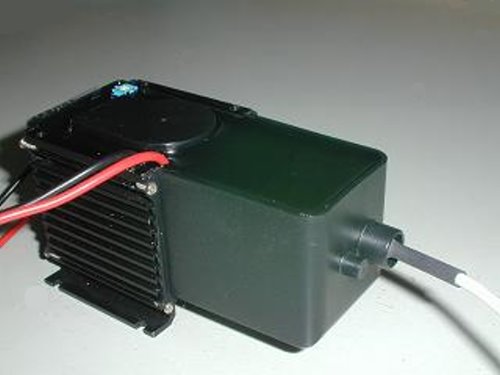

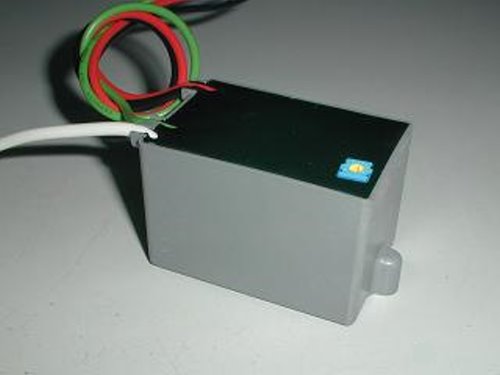

ION12V5W
|
(+ output) ¡@ (- output) |
5W Max. | 12VDC | 8.5KV Max. | 0¢XC to +80¢XC |
|
|
|

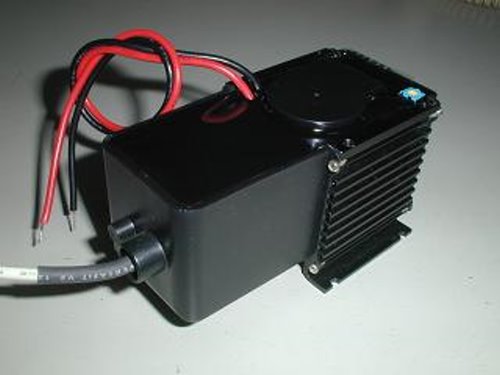

ION12V20W
|
(+ output) ¡@ (- output) |
20W Max. | 12VDC | 18KV Max. | 0¢XC to +80¢XC |
|
|
|
ION24V25W
|
¡@ | 25W Max. | 24VDC | 18KV Max. | 0¢XC to +80¢XC |
|
|
|
ION24V30W
|
¡@ | 25W Max. | 24VDC | 18KV Max. | 0¢XC to +80¢XC |
|
|
|
Other Products |
|||||
| Model No. | Operating Power | Input Voltage |
Output Voltage (RMS) |
Operating Surface Temperature | Data Sheet |
|

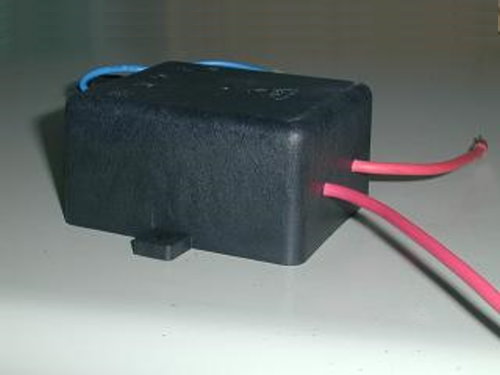

CHP-0122A |
5W Max. | 110VAC | 7KVAC | 0¢XC to +80¢XC |
|
|

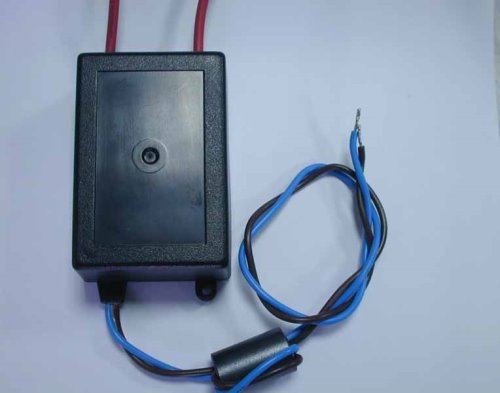

CHP-1018A |
10W Max. | 110VAC | 7KVAC | 0¢XC to +80¢XC |
|
|
CHP-0418A |
25W Max. | 220VAC | 8KVAC |
0¢XC to +80¢XC |
|
| ¡@ |
